How to Know if Your Motherboard Is Dead: 7 Tests That Work

You press the power button. Nothing. Not even a fan twitch. The screen stays black, the case LEDs stay dark, and your PC has all the electrical life of a brick. Your first thought: Is my motherboard dead? Your second thought: Or is the power supply unit just unplugged?

Here's the honest answer: most users can determine if the motherboard is dead within 10 minutes using only a screwdriver, a process of elimination, and the diagnostic path I'll walk you through below. Motherboard symptoms are deceptive — they mimic PSU failures, RAM faults, and even dead CPUs. I've rebuilt hundreds of systems over the years, and I can tell you that more than half the "dead motherboards" I've been asked to fix turned out to be something far cheaper to repair.

This guide gives you a systematic path: a quick symptom checklist first, then zero-tool tests, then advanced isolation methods, and finally a repair-or-replace decision. I'll cover both desktop and laptop failure scenarios where relevant, though the bulk of the hands-on testing applies to desktop boards.

---

7 Clear Symptoms of a Dead Motherboard

No single symptom proves a motherboard is dead. But when several of these appear together, the picture gets much clearer.

Symptom 1: No Power, No Fans, No Indicator Lights

The most obvious sign: you press the power button and the system remains completely dark. No fans spin. No LEDs glow. No hard drive chatter. It's as if the PC isn't even plugged in.

Here's the trap I see people fall into constantly: they instantly blame the motherboard when the real culprit is a faulty power button or a loose front-panel header. I once spent an hour troubleshooting a "dead" board only to find the case's power button wire had snapped inside its connector. So before you panic, unplug the front-panel header and short the two power pins with a screwdriver. If the system fires up, your motherboard is fine — your case button is the problem.

The most common causes of a genuinely dead no-power condition are failed power delivery circuits on the board, a short circuit somewhere in the system, or the motherboard's 24-pin connector not properly seated with the PSU.

Symptom 2: No POST Beep or Error Codes

When you press the power button, your motherboard runs a Power-On Self-Test (POST). It checks the CPU, RAM, and GPU, then signals the result. In the old days, that signal came through a tiny internal speaker — a single short beep meant "all clear," while a series of long and short beeps pointed to specific failures.

Here's what a dead board looks like: complete silence. No beep, no error LED activity, no Q-Code display. If you've installed known-good RAM and a known-good CPU, a motherboard that won't execute POST is almost certainly dead or dying.

Some modern boards use debug LEDs labeled CPU, DRAM, VGA, and BOOT, or a two-digit hexadecimal Q-Code display. If none of these indicators show any activity at all, that's a bad sign. If they light up and get stuck on one code, that's actually useful diagnostic information, not a death sentence.

Symptom 3: No Display Output Even With Fans Spinning

This one fools a lot of people. The PC powers on, fans spin, LEDs glow — but the monitor stays black. There's a big difference between "the board is receiving power" and "the board is initializing memory and graphics."

Try this before blaming the motherboard: if your CPU has integrated graphics, remove your discrete GPU and plug the monitor directly into the motherboard's video output. If you get a picture, the issue is your GPU or its PCIe slot. If you still get nothing, reseat your RAM — test one stick at a time in each slot. Swap in a different GPU if you have one. If the display stays black after all of that, the motherboard may be failing to initialize critical hardware. It's not always a permanent death — sometimes it's a degraded memory controller or a failing PCIe lane.

Symptom 4: Visible Physical Damage — Bulging Capacitors, Burns, Burning Smell

This is the one symptom you can trust with your eyes. Power off the PC, open the case, and inspect the board under good light. Look for:

• Capacitor bloating: the tops of electrolytic capacitors should be perfectly flat. If they're bulging, domed, or leaking brown residue, that's a classic sign of capacitor failure. I've seen capacitor bloating take out more boards than any other single cause, especially on units past the five-year mark.
• Burn marks or discolored traces: dark spots, scorched areas, or melted plastic around the VRM area or the 24-pin connector.
• Any strong burnt circuit smell — that acrid, fishy-electronic odor that means a component has shorted out.

If you see any of this, stop. Don't power the system on again. A board with visible physical damage can send unstable voltage into your CPU, GPU, or storage drives and destroy them too.

Symptom 5: Random Shutdowns and Reboots That Eventually Stop

Motherboards rarely die without warning. Often, they degrade slowly first. The system becomes unstable: random reboots during gaming, sudden shutdowns while idling, and crashes that Windows Event Viewer logs as Kernel-Power 41 events. Drivers look fine, temperatures look fine, but the machine keeps dying anyway.

If you've already tested your PSU and RAM — and they check out — the motherboard's voltage regulators are the prime suspect. When VRM components start to fail, they can drop voltage under load, and the system simply shuts down to protect itself. It's a warning sign that the board's days are numbered. In my experience, once a board starts doing this regularly, replacing it is the only reliable fix.

Symptom 6: USB Ports and RAM Slots Suddenly Stop Working

Partial motherboard failure is a real thing. The board might still boot and run, but specific I/O clusters just stop working. Let's say all your rear USB ports on the left side die, or your front-panel USB headers stop delivering power, or one of your four RAM slots refuses to POST with a known-good stick.

Here's how to know it's the board and not your peripherals: take a device you know works and test it in every USB port. If it fails in all of them, the motherboard's USB controller or its supporting circuitry is at fault. Similarly, if RAM stick A works in slot 1 but the system won't POST when it's in slot 3, and you've confirmed the stick is good, then slot 3 is dead.

Multiple simultaneous failures across different I/O channels almost always point back to the board itself.

Symptom 7: Swapping Other Components Changes Nothing

This is the conclusive elimination sign. You've swapped the RAM, replaced the GPU, tested a different PSU, and even dropped in a known-good CPU — and the failure remains exactly the same. No POST, no display, no beep.

Follow this logic chain: known-good PSU + known-good CPU + known-good RAM + known-good GPU + identical failure = motherboard failed.

That's not a guess. That's process of elimination, and it's the same method every repair technician uses. If all other components work or are confirmed functional, the only common denominator left is the board itself.

---

How to Test a Motherboard Is Dead: Step-by-Step Zero-Tool Diagnosis

Before you order a replacement board or spend money on a technician, run through these five tests. They cost nothing and can save you a lot of frustration. Some of these are the exact steps I run through on every dead PC that comes across my bench.

Step 1: Unplug the PC and Hold the Power Button for 30 Seconds

Shut off the PSU switch and unplug the wall power. Then disconnect the 24-pin and 8-pin power cables from the motherboard — not just at the wall.

Now hold the case's power button for 30 full seconds. This drains residual charge from the capacitors and forces a CMOS electrical reset. It clears any false ESD latch that might be frozen. This trick has revived boards that looked completely dead — it's a widely confirmed fix in Reddit repair communities and on tech forums. I've personally seen it resurrect two boards I was ready to scrap.

Step 2: Check the Standby Power LED on the Motherboard

Look at your motherboard around the 24-pin socket. Most boards have a tiny standby LED — often green or amber — that lights up whenever the board is receiving +5V standby power from the PSU, even when the system is off.

This little light tells you a lot:

• LED is off but the PSU is connected and turned on? The board isn't receiving power at all. Either the PSU isn't delivering standby voltage, or the motherboard's power delivery path is broken.
• LED is on but the system fails to POST? That's a different diagnostic branch — the board has power but can't complete the boot sequence.

If the standby LED is dark, check your PSU first. More on that below.

Step 3: Remove All Non-Essential Hardware and Try to Boot

Every repair technician uses this test. It's called breadboarding, and it's exactly what it sounds like: strip the system down to its bare essentials and see if it can POST.

Remove everything that isn't required to boot:

• All storage drives
• All expansion cards (including the GPU if your CPU has integrated graphics)
• All but one RAM stick
• All case fans except the CPU fan
• All USB headers and front-panel connections

Your minimal setup should be: motherboard + CPU + one RAM stick + CPU cooler + PSU. Then jump the power pins with a screwdriver.

If this minimal configuration still shows no signs of life, you've narrowed the problem down to the motherboard, CPU, or PSU. That's real progress.

Step 4: Reconnect the Case Speaker and Listen for Beep Patterns

This step surprises a lot of builders: most modern cases don't include a small internal speaker, and most motherboards no longer ship with one in the box. But the motherboard's header for it is still there, usually labeled SPEAKER or SPK.

If you have an old case lying around, salvage its speaker. Or buy one for a few dollars. Plug it into the header and listen during POST:

• One short beep: POST succeeded. The board is alive.
• No beep at all: The board isn't even starting the POST process.
• Repeating long beeps: Memory failure.
• Repeating short beeps: Power supply or motherboard issue.
• One long, two short beeps: GPU failure.

No beep with known-good hardware is a classic dead-board signal. But remember — some boards don't beep by design or need a BIOS setting enabled to use the speaker. Check your manual.

Step 5: Reset the CMOS to Rule Out Bad BIOS Settings

A corrupt BIOS setting or a failed BIOS update can cause a no-boot condition that looks exactly like a dead board. I've seen this more times than I can count — a system arrives "dead," and it turns out the user changed one memory timing setting and the board simply refuses to start.

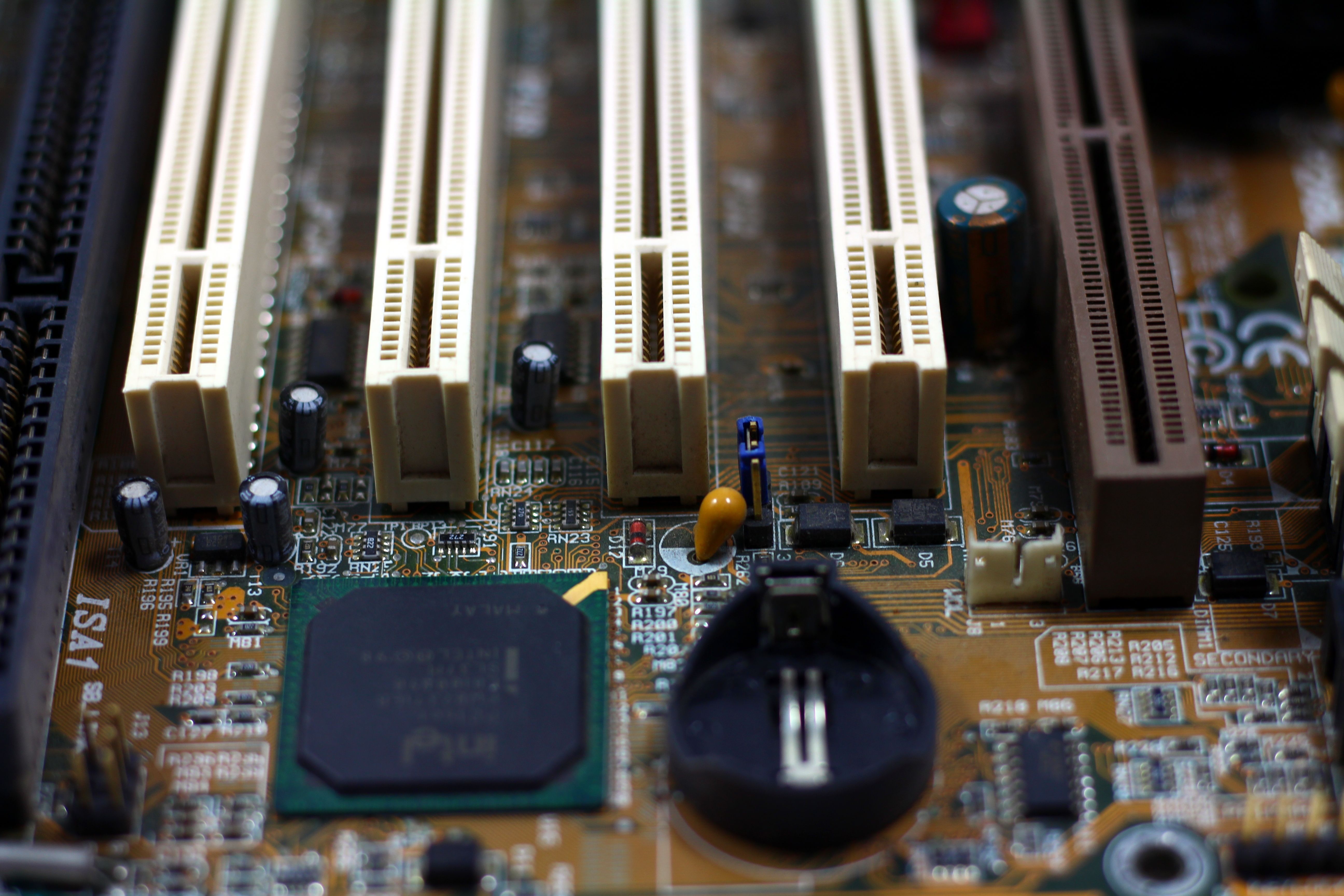

Find the CMOS battery on the motherboard — it's a silver coin-cell battery, usually a CR2032. Remove it, wait 60 seconds, and put it back. Or use the CLR_CMOS jumper if your board has one. This resets all BIOS settings to factory defaults.

A depleted CMOS battery can also cause issues: if the battery voltage drops too low, some boards forget their settings every time you unplug them and may fail to boot properly. If your board is more than five years old and acting flaky, replacing the CMOS battery costs about $3.

After the reset, reconnect power and attempt a minimal boot again.

---

Is My Motherboard Dead or Is It the PSU? A Side-by-Side Comparison

This is the single most common question I get from readers. And honestly, it makes sense — a dead PSU and a dead motherboard often produce identical symptoms. Here's how to tell them apart.

PSU Symptoms vs. Motherboard Symptoms: How to Differentiate Quickly

Some symptoms point strongly in one direction:

PSU-exclusive symptoms:

• A ticking or clicking noise coming from the power supply itself
• A burning smell from the rear of the case near the PSU
• The PSU fan stutters but never spins up
• The system dies under load but works fine when idle

Motherboard-diagnostic symptoms:

• The standby power LED on the board stays off even with a known-good PSU connected
• Power reaches fans, but the board never begins POST
• Multiple dead USB channels with otherwise functional components
• Visible capacitor damage on the board itself

But here's the uncomfortable truth: both can cause "no power at all." So visual inspection alone isn't enough. You need to test the PSU independently.

The Paperclip Test: Test the PSU Alone

This is the classic "jump the PSU" test. Unplug the 24-pin ATX connector from the motherboard. Take a paperclip or a short piece of wire, bend it into a U shape, and insert one end into the pin corresponding to the green wire (PS_ON, pin 16) and the other end into any black ground pin (pin 15, 16, or 17 are typical choices).

Plug the PSU into the wall, flip the switch on, and watch the PSU fan.

If the fan spins: the PSU turns on. That's all this proves — it doesn't tell you whether the PSU delivers stable, clean power under load. A PSU can spin its fan and still fail to provide adequate voltage on specific rails.

Critical warning: don't do this test while the PSU is connected to the motherboard or any other component. You're deliberately energizing the power supply outside of its normal control circuit.

For a definitive answer, use a digital PSU tester or a multimeter. They're inexpensive and give you actual voltage readings.

Swap in a Known-Good PSU Before Blaming the Board

If you have a spare PSU — or a friend willing to lend one — this is the cleanest test possible.

• Known-good replacement PSU + successful boot = your original PSU was the problem
• Known-good replacement PSU + still no boot = the motherboard, CPU, or RAM becomes the suspect

In my repair experience, roughly 80% of no-power systems trace back to the PSU, not the motherboard. PSUs fail more frequently than any other component, and they're also the cheapest major component to replace. That's why I always advise testing the PSU first — it's not just methodologically sound, it's also the financially smart order of operations.

---

Motherboard Beep Codes and Debug LEDs: How to Read POST Diagnostics

POST diagnostics are like the motherboard's way of speaking to you. Learn the language and you can skip hours of blind troubleshooting.

Connect the Case Speaker and Decode Common Beep Strikes

Different BIOS manufacturers use different beep conventions, but some patterns are nearly universal:

Use Onboard Debug LEDs and Q-Code Displays

Modern motherboards — especially mid-range and high-end models — include diagnostic LEDs right on the board. They're typically labeled CPU, DRAM, VGA, and BOOT. During a normal boot, these LEDs cycle through quickly. If the system hangs, the LED corresponding to the problem component stays lit.

Here's a nuance that surprises people: an LED stuck on "CPU" doesn't always mean the CPU is dead. In many cases, it means the motherboard can't communicate with the CPU — which could point to a BIOS incompatibility, a bent pin in the CPU socket, or failed voltage delivery around the socket. All of those are motherboard issues, not CPU issues.

Higher-end boards go further with a Q-Code display — a tiny two-digit hexadecimal readout. Common codes include "00" and "FF," both of which indicate that the CPU hasn't been initialized. Exact code meanings differ between manufacturers, so check your manual or the manufacturer's website.

---

How to Test a Motherboard with a Multimeter: Voltage Verification

When visual inspection and POST diagnostics aren't enough, it's time to measure actual voltages. This requires a basic digital multimeter — I recommend one with a 20V DC scale, which covers everything you'll need.

Measure Standby Power on the 24-Pin ATX Connector

With the PSU turned on (connected to wall power), set your multimeter to DC voltage. Place the black probe on a black wire (ground) and the red probe on the purple wire — that's the +5V standby rail, or +5VSB.

The expected reading: between 4.85V and 5.25V.

• Below 4.85V: the standby rail is weak. This usually points to a failing PSU, not the motherboard.
• Dead 0V: either the PSU is dead, or the motherboard is shorting the standby rail to ground.

If you suspect a motherboard short, disconnect the 24-pin connector from the board entirely and measure the purple wire directly from the PSU. If you get a proper 5V reading with the connector unplugged but near-zero when plugged in, the motherboard has a short on the standby rail — and that's a board-level failure.

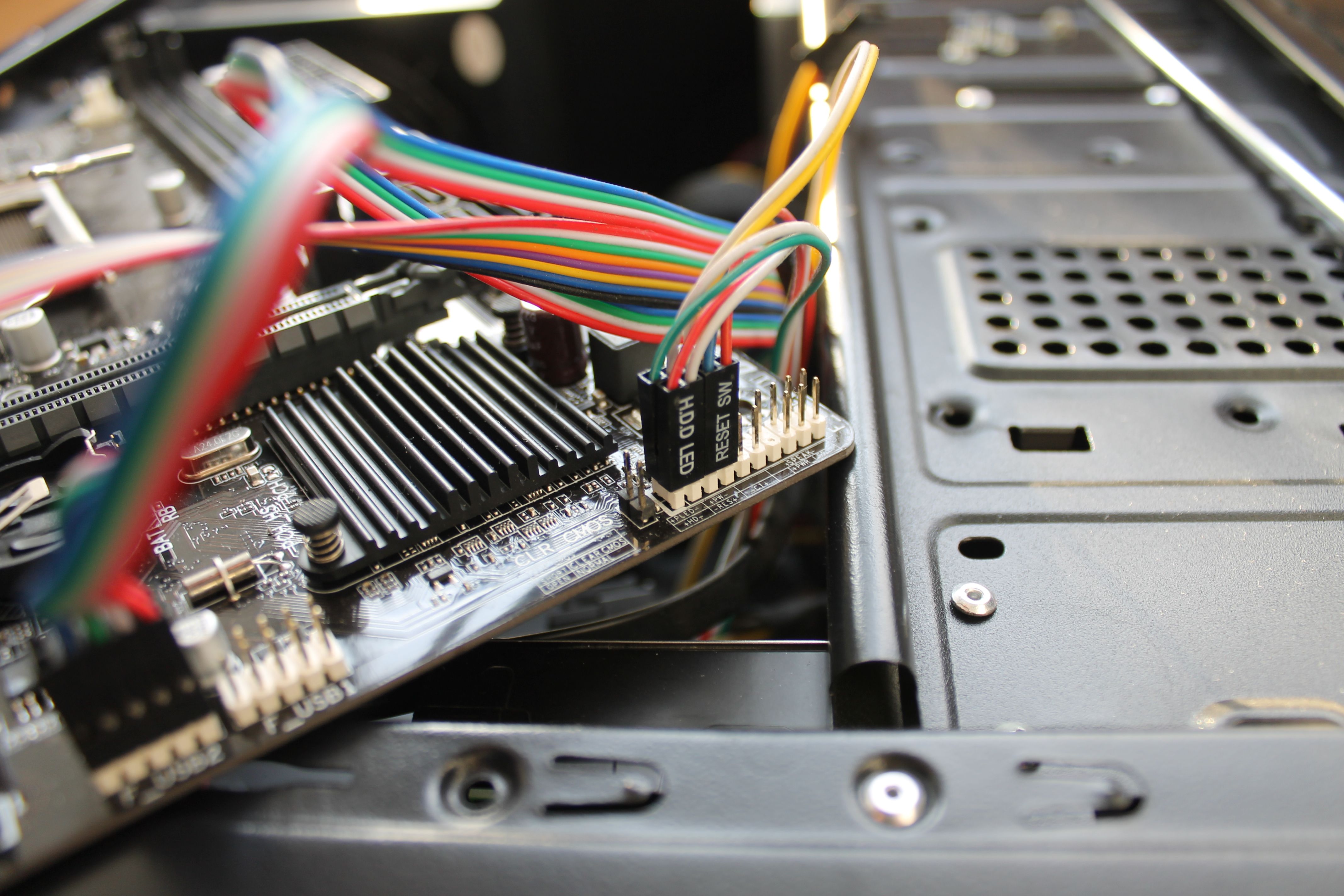

Test the Power Button Circuit by Shorting the Front-Panel Pins

This technique saves a surprising number of "dead" systems. The case's power button is a simple momentary switch — it shorts two pins together when pressed. If the switch mechanism wears out or a wire breaks, your PC won't turn on even though the motherboard is perfectly healthy.

Unplug the case's power button header from the motherboard. Locate the front-panel header — usually in the bottom-right corner of the board — and find the two pins labeled PW+ and PW-. Briefly touch both pins with the tip of a flathead screwdriver.

• System turns on: the motherboard and PSU are fine. Your case power button is the issue.
• Nothing happens: the board can't execute a start command — another sign of dead or damaged motherboard logic.

One quick note: the front-panel header layout varies between manufacturers, so check your manual before shorting pins. Shorting the wrong pins can — worst case — damage the board.

---

How to Test a Motherboard Without a CPU — What Worked and What Didn't

Given all the above, here's where things get tricky: testing a motherboard without a CPU is a common request, but it's nowhere near as useful as people hope.

Why Booting Without a CPU Is an Unreliable Test

Modern motherboards refuse to POST without a CPU installed. There's no beep, no display, no hint of life — because the CPU is the component that orchestrates the entire bootstrap process. A motherboard with no CPU is essentially a circuit board waiting for its brain.

So if you install nothing and get nothing, that's normal. It tells you nothing about whether the board is alive.

Here's what actually works: install the cheapest, lowest-TDP CPU that's compatible with your motherboard — something like a Celeron on modern Intel boards or a base-model Athlon on AMD boards. This removes the CPU as a variable and puts minimal strain on the board's power delivery system, making it easier to isolate a motherboard failure.

The exception worth knowing about: some premium boards offer a BIOS Flashback feature that lets you update the BIOS without a CPU installed. This proves the board's standby power and BIOS chip are functional, but it doesn't verify the full boot path.

Use a POST Tester Card to Detect CPU-Motherboard Communication

If you want a definitive answer on whether the motherboard is executing its boot sequence, a POST diagnostic card is the tool. It plugs into a PCIe or MiniPCIe slot and displays hexadecimal codes as the boot progresses.

If the card reads "00" or "FF" immediately after power-on and never changes, the CPU never got initialized. That points to one of three issues: a dead CPU, a damaged CPU socket, or a motherboard power-delivery failure. All three share a common theme — they require board-level or component-level intervention.

POST cards are far more useful than a paperclip test because they give you visibility into where the boot process stops. They cost between $10 and $30, which is cheap insurance when you're staring at an ambiguous hardware issue.

---

Can a Dead Motherboard Damage Other Parts? Immediate Steps to Protect Your Hardware

I need to be direct about this: yes, a dead motherboard can take other components with it. If a board's voltage regulators short out, they can send unstable voltage to the CPU, GPU, storage drives, and anything connected via USB.

In one of the scariest cases I ever encountered, a failed motherboard's 12V rail sent excess voltage through the entire system. It killed a GPU, fried an NVMe SSD, and damaged a printer that happened to be connected via USB. All told, that motherboard caused more than $800 in collateral damage.

Remove Power and Disconnect All Peripherals

If you have any reason to believe the motherboard is damaged — symptoms, smell, visible burns — turn off the PSU switch immediately. Then disconnect every component: GPU, drives, RAM, USB devices, the works.

Leave only the motherboard and PSU connected, then inspect the board for burnt components. If you see nothing, you can test the bare board. If you do see burn marks, don't power anything else until the board is professionally inspected or replaced.

Do Not Do a "Suicide Boot" Without Isolation Testing

I understand the temptation. I've felt it myself — that urge to hit the power button one more time and hope it works. Don't.

If the board is visibly damaged or smells burnt, never power it again unless you're using a sacrificial PSU. A $40 junk PSU is far cheaper than a $700 GPU or a $200 SSD that gets fried by a shorted board. Use integrated graphics when testing, keep all drives unplugged, and assume every power-on carries risk until the culprit is isolated.

---

Motherboard Dead? Repair vs. Replacement and Costs to Expect

Once you've confirmed the motherboard is dead — congratulations, you've done the hard part. Now comes the decision: repair or replace?

When a Motherboard Is Actually Repairable

Motherboard repair is more viable than most people think, but only in specific circumstances:

• Capacitor replacement: If you have bulging capacitors and basic soldering skills, replacing them is cost-effective on premium boards. A capacitor kit costs $10–20, and a local electronics shop might charge $40–60 for the labor.
• Power connector resoldering: Cracked solder joints on the 24-pin or 8-pin connector can sometimes be repaired for $50–80.
• Trace-level PCB repair: This is specialist work. It requires microsoldering skills and sophisticated equipment. It's rarely cost-effective unless you're dealing with a flagship board worth $400+.

Honestly, on budget motherboards, repair rarely makes sense. That's the reality of it: a $50–80 repair on a $100 board is inefficient. I've told more than one client "just buy a new one" — and that was the right call.

For reference, typical costs in the US:

• Professional motherboard repair: $40–$100
• New entry-level motherboard: $60–$150
• New mid-range motherboard: $150–$250

RMA Process: How to Determine if Your Motherboard Is Still Under Warranty

Before you spend any money, check whether the board is still under warranty. Most manufacturers — ASUS, MSI, Gigabyte, ASRock — offer a 3-year warranty on motherboards. Some premium models stretch to 5 years.

Find the serial number (usually printed on the board itself or on a sticker on the rear I/O) or dig up your original invoice. Then:

1. Contact the manufacturer's support channel
2. Ask about cross-shipping options (they ship a replacement before receiving your defective board)
3. Never remove the CPU socket cover or aftermarket heat sinks that can void your RMA

If you bought the board in the last 30–60 days, your retailer may handle the RMA for you — that's often the fastest path.

---

Motherboard Failure Causes and Prevention: Surges, Capacitors, and Clean Power

The best way to deal with a dead motherboard is to prevent one from dying in the first place. Here's what actually kills boards — and how to stop it.

Common Killers of Motherboards

Power surges and lightning strikes: We tend to think of surge protectors for the wall power, but surges can also enter through Ethernet cables. That's why you'll see techs recommend protecting both the electrical and network paths.

Poor-quality PSU voltage ripple: A low-quality PSU doesn't deliver clean, stable power. The ripple and noise it produces gradually degrade the motherboard's power-delivery components. Electrical engineers I've worked with describe it as a slow, cumulative stress — like driving a car with unbalanced wheels. It works, but everything wears faster.

Physical damage: Improper motherboard mounting, overtightened CPU coolers that crack the PCB, and electrostatic discharge (ESD) while handling the board. I always recommend wearing an ESD strap or at least touching a grounded metal surface before handling components.

Dust and thermal stress: Dust acts as an insulator, trapping heat. Extended thermal stress accelerates electrolytic capacitor aging and can eventually cause capacitor bloating. If you're running a board past the five-year mark, this is the most common failing point.

Protect Your Next Motherboard with a Surge Protector and Quality PSU

A few practical habits will add years to your motherboard's life:

• Use a surge protector or UPS for both the power and network lines. A UPS is better, because it delivers clean power even during brownouts.
• Choose a PSU with at least 80+ Bronze efficiency — and ideally one with solid review coverage. Quality matters more than brand name. Look for voltage regulation within ±5% and good ripple suppression.
• Keep case airflow positive: more intake than exhaust prevents dust from being pulled through unfiltered gaps.
• Clean dust filters every few months — I set a reminder on my calendar for the change of seasons.
• Update the BIOS after installing a new board before enabling any untested overclocking settings.

These steps won't make a motherboard immortal — but they'll tip the odds in your favor.

---

FAQ

How do I know if my motherboard is dead?

Check for standby LED activity, confirm PSU output with a paperclip test, remove the CMOS battery, attempt a minimal boot with one RAM stick, and listen for POST beeps. A dead motherboard typically shows no signs of life and produces no POST codes at all.

Can a computer turn on with a dead motherboard?

It depends on what you mean by "turn on." A completely dead motherboard won't let the system power on under any circumstances. But a partially failed board can spin up fans and light LEDs — it just never completes hardware initialization. No display, no beep, no POST. The machine draws power but never boots.

Is it my motherboard or my power supply that is faulty?

Run the paperclip test on the PSU alone first. If the PSU fan spins, move on: connect a known-good PSU if you can get one. If the system still does nothing with a known-good PSU, the motherboard becomes the prime suspect. The standby LED on the motherboard is an excellent indicator — no standby LED with a confirmed working PSU points strongly to a dead board.

Can a dead motherboard damage other PC components?

Yes. A motherboard with a shorted VRM or damaged power rail can send unstable voltage to the CPU, RAM, GPU, and SSDs. Unplug everything immediately if you suspect a board failure, and test with a sacrificial PSU and integrated graphics whenever possible.

How do I fix a motherboard with no display?

Reset the CMOS first. Then reseat the GPU and RAM, test one RAM stick at a time, switch to integrated graphics if available, and try a different display cable. If nothing works, pull the board out of the case and breadboard it. If it still won't POST, the board is the problem.

What does a fried motherboard look like?

Usually, a fried board shows swollen or burst capacitors, blackened areas on the PCB, melted plastic near MOSFETs, scorch marks on the 24-pin connector, and a pungent, slightly sweet or fishy burned electronics smell. But internal damage can also exist with zero visible signs — so don't assume a board is fine just because it looks clean.

---

Conclusion

By this point, you should know exactly where your system stands. Let me recap the diagnostic path:

1. Zero-tool checks first: unplug, drain, check standby LED, breadboard the system
2. Isolate the PSU: paperclip test, then swap in a known-good unit
3. Rule out RAM and CPU: one stick at a time, minimal boot configuration
4. Advanced diagnostics: beep codes, debug LEDs, multimeter readings, POST cards
5. Make the decision: repair, RMA, or replace

Confirming a dead motherboard always comes down to systematically eliminating the PSU, CPU, and RAM. It's not glamorous, but it works. And follow the safety rules diligently: never run a visibly damaged board, and always unplug power before you go poking around with a multimeter.

If your motherboard passes every test except the POST test — no beep, no debug LED, no display, no life — stop troubleshooting and start deciding. A $100–200 replacement board beats another week of staring at a dead PC.

And if you're still unsure, I want to hear from you. Leave a comment with your debug LED code or your beep pattern below — our community will help you confirm the diagnosis before you buy a replacement. In the meantime, protect your components, test safely, and remember: every dead motherboard teaches you something for the next build.
